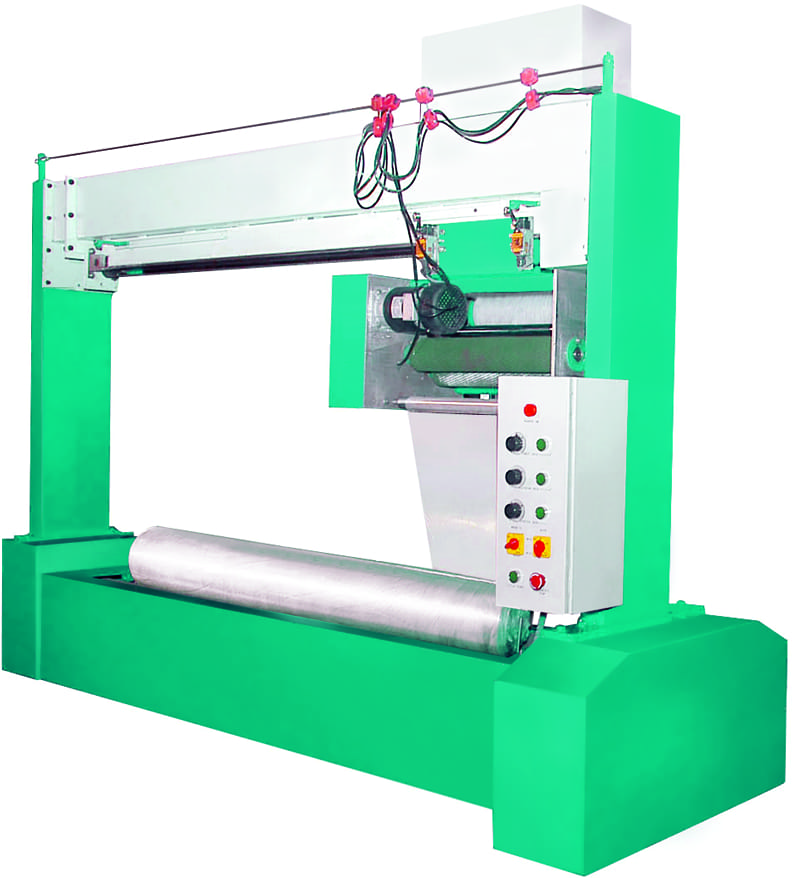

AI-RW
Features
- Highly economical and huge saving over shrink packing / gunny bundles.
- Suitable for packing any rolls of Denim cloth, curtain cloth, carpet, foam sheets, upholsteries, fabrics, film, paper etc.
- Tremendous savings in labour, time and money.
- Highly durable dust and moisture proof packing.
- Variable overlap, variable end reinforcements, variable stretch percentage & variable roller speed.
Technical Specification
| Capacity | : | 30 - 40 Rolls / hour |
| Roll weight | : | 400 kgs |
| Roll Dia./ Roll width | : | 600 mm / 1800 to 4000 mm |
| Turn table height | : | 350 mm (above GL) |
| Turn table speed | : | 50 mtrs / min |
| Installed Power | : | 1.1 kW |
| Power Supply | : | 220 V Single Phase / 50 Hz |

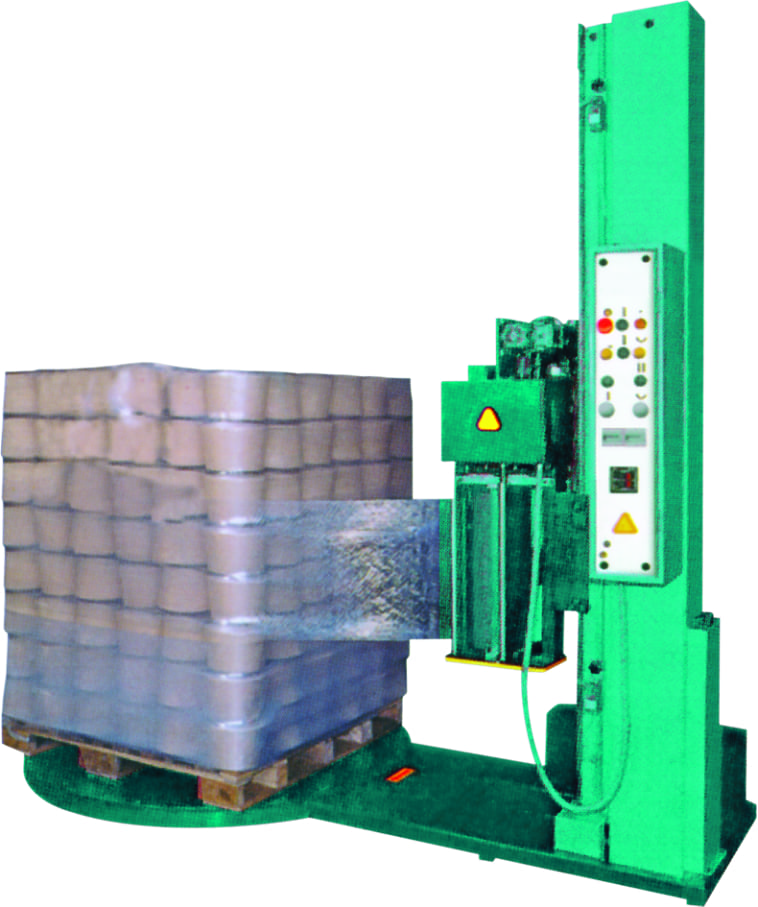

AI-SW
Features
- Variable functions for wrapping, stretching and overlapping
- Automation wrapping cycle
- Environment friendly for recyclable film
- Ramp position flexibility
- Hand pallet truck for smoother operation
Technical Specification
| Turn table Dia. | : | 1500 mm |
| Production Speed | : | 15-25 Pallets / Hours |
| Pallet Size | : | 1120 x 1120 mm |
| Max. Weight/ Pallet | : | 1500 kg |

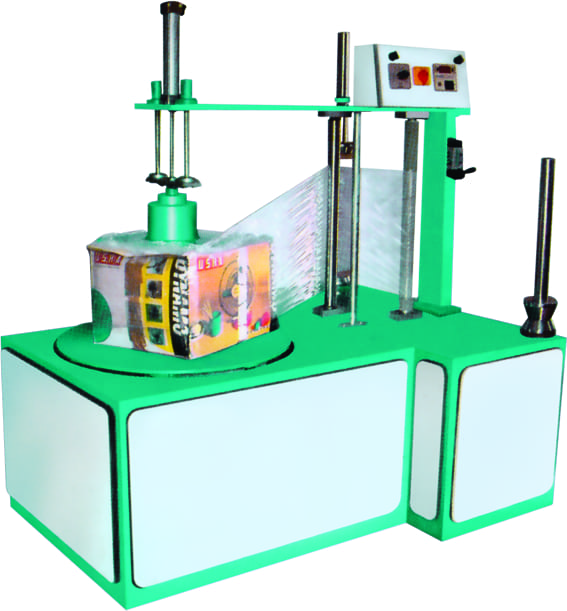

AI-CW
Technical Specification
| Cartoon Size | : | 20" x 20" (max.) |
| Cartoon Height | : | 50 kg (max.) |
| Wrapping Rate | : | 30 to 80 Cartoon / Hours |
| Power Req. | : | 220v Single Phase / 1 HP |

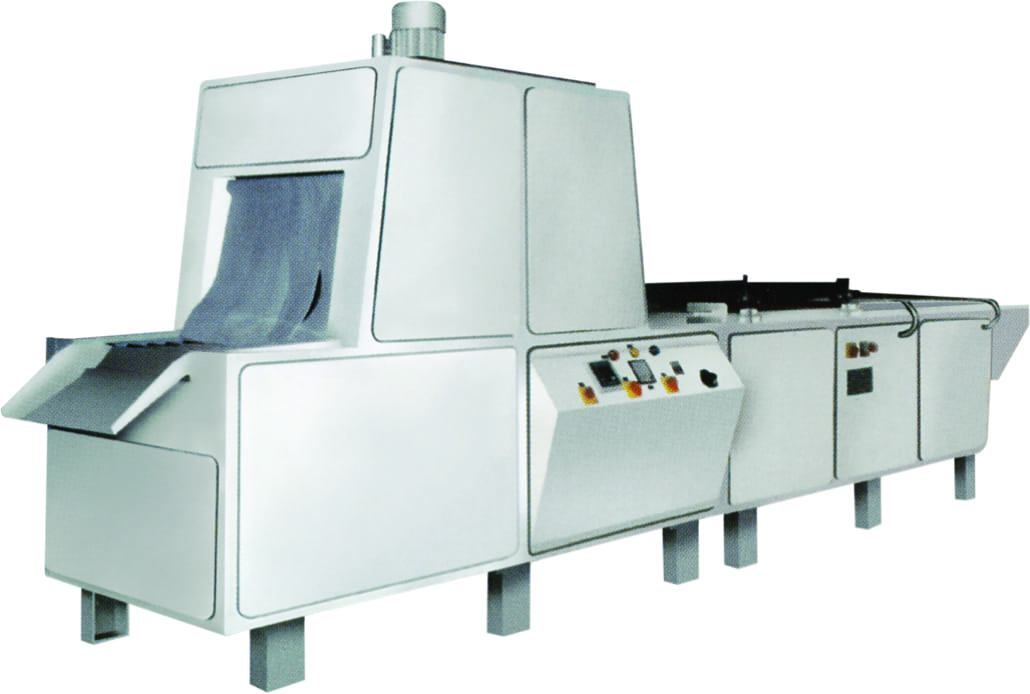

AI-ST
Features
- Efficient heating chamber with full insulation
- Digital temperature controller
- System runs on one circuit
- Suitable for LDPE & Polyolefin shrink film
- Magnetic hold-down
- Quick change of seal wire
- Variable speed of tunnel (Optional)
